buses passenger car mini van passenger vehicle
Price: |
16800.0~18600.0 USD |
Payment Terms: |
T/T,L/C |
Place of Origin: |
Chongqing, China (Mainland) |
Product Detail
Model No.:
CKZ6581
Delivery Date:
30
Type:
Van
Production Capacity:
2000
Made In:
Others
Fuel:
Diesel
Specifications
LxWxH: 5760 * 1910 * 2350 mm
Curb Weight:4200 kg
Max speed: ≥100 km/h
Capacity of passengers:10-17
Fuel type:

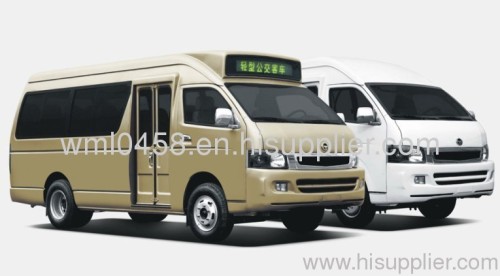

The mini bus CKZ6581D is developed for towns and villages , urban communities , tourism . The unique non-bearing body, the split structure of the chassis ,two rear-wheel can carrying capacity of 4.2 tons , especially suitable for rural passenger load which always has overloading andhigh- intensity running . Unique half-length head design , makes the air drag coefficient smaller than the corresponding level truck about 20% and effective in reducing fuel consumption . vehicle inside upright space is 1.74m , 0.48 meters wide passangerway , can load more passengers and more convenient passengers flow.
The left and right-hand drive door and passenger door, are convenient to the passengers to get on and off, can realize self-service ticketing
to reduce operational costs .
Specifications
LxWxH: 5760 * 1910 * 2350 mm
Curb Weight:4200 kg
Max speed: ≥100 km/h
Capacity of passengers:10-17
Fuel type: Diesel, gasoline is optional
Engine model:JX493ZLQ3
Engine position: fronte
Displacement:2771CC
Maximum Power:85KW
Maximum torque:285 Nm/rpm
Emission Standard:Euro III
Chasis Model: EQ6552K3AC
Suspension: less-leaf spring ; shock absorber
Steering system:Mechanical recirculating ball steering
Clutch:Single, dry diaphragm spring
Gear box: 5+1 speed
Tyre:6.5-15
